Excavator steel tracks & chains

Do you have worn or broken excavator steel tracks, track chains, track groups, or need steel tracks for sale for mini excavators? Having trouble keeping these parts on, especially on slopes or in soft conditions? It’s time for a new set of excavator steel tracks or track chains for your mini excavators and machinery from TKV.

TKV supplies links from 90mm pitch to 260mm pitch inclusive. These suit most makes and models of excavator, dozer, trencher, borer and much more. We also have steel tracks for mini excavators.

TKV is FASTEST and makes it EASIEST to get VALUE, LASTING or PREMIUM tracks & undercarriage parts on your machine.

The “TKV Promise Guarantee” is an expression of the confidence we have in our product.  For example, to ensure only the highest quality levels, all bushings are subjected to a special induction heat treatment which hardens both the inside and outside surfaces.  This thorough treatment significantly increases the service life of TKV’s excavator steel tracks, track chains and steel tracks for mini excavators.

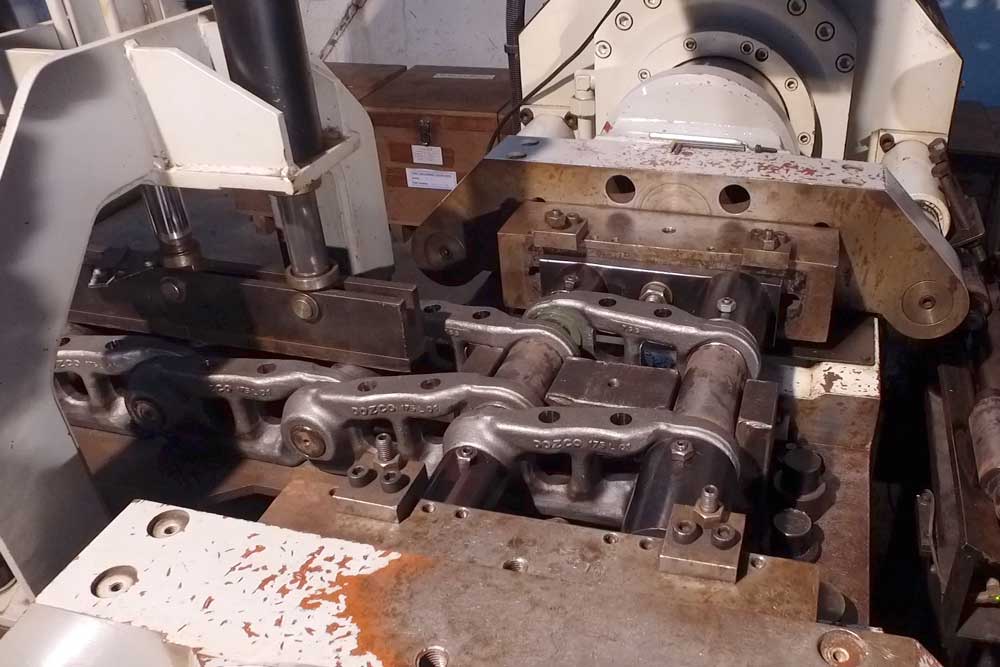

All our excavator steel tracks and track chains links are forged (not cast). They are subsequently processed on high-tech automated CNC machines. This guarantees a very high level of accuracy, thus better fitment. The carbon steel alloy selected ensures that the design does not become brittle through the heat treatment. Yet it retains a depth of hardening for long term wear characteristics.

To Keep Moving call 1300 65 11 43, use our Parts Finder or email us today to talk to one of our experts.

Find your Parts

To obtain a quote or for more information, select the make and model of your machine, then select the parts you require.

Select a Make

Select a Model

CLEAR

CAN’T FIND WHAT YOU’RE LOOKING FOR?

Excavator steel tracks, Track chains & Steel tracks for mini excavators
Track chains - Excavator steel tracks, Track chains & Steel tracks for mini excavators

GREASED TRACK CHAINS 

Greased Track Chains

TKV excavator track chains are typically a sealed and greased type construction. These greased track chains utilise a plastic seal between the link and the track pin with a synthetic grease lubrication and are very rugged and strong.

The advantages of greased track chains links are:

  • The seals prevent soil infiltration and keep the grease in the track links – increasing life.
  • The pins are greased before pressing, so that they are resistant to weather influences and corrosion.
  • There is minimal play between the pin and the bushing, thus preventing premature wear.
  • This combination results in a 20% longer service life for the greased track chains links compared to dry chains.

OIL LUBRICATED TRACK CHAINS  (SALT CHAINS)

Oil Lubricated Track Chains

Due to the increased mobility and speed of tracking, bulldozer track links are usually oil lubricated track chains – known as SALT chains (Sealed and Lubricated Type). These oil lubricated track chains use a wet bushing with oil trapped in the bushing to ensure that the pin and bush joint is kept constantly lubricated.

All TKV’s SALT chains have a split master joining system. This is essentially a track link-joint which consists of two separate parts that fit into each other and is bolted together through the track shoe.

With SALT chains (oil lubricated track chains), there is more play between the pin and the bushing than with greased track links. After the pin is pressed, the space between the pin and the bushing is vacuumed and filled with oil.  High quality seals are essential for preventing excess wear to an oil lubricated track chains link.

The advantages of oil lubricated SALT track chains are:

  • The optimally sealed joints provide long life in high mobility and speed applications.
  • The split link master joints do not require a track press for fitting or removal.
  • Oil lubricated track chains are typically heavier and quieter in operation than greased chains.

TRACK GROUPS

Track Groups

In addition to supplying replacement track chains, TKV offers a full track groups assembly service. If you need to get your machine moving quickly, or is the track shoes are worn or bent, then track groups may be a good option.

TKV track groups are fully assembled track chains with the track shoes installed. Simply wrap your new tracks on your machine and get back to work – fast!!

The track shoes are installed using high tensile 12.9 grade track bolts and nuts.  Torque is also set and adjusted to within +/- 5% utilising electro pneumatic torque wrench technology.



We have excavator steel tracks, track chains, track groups and steel tracks for mini excavators for CAT, Doosan, Hitachi, Hyundai, JCB, John Deere, Kobelco, Komatsu, Kubota, New Holland, Sumitomo, Takeuchi, Volvo, Yanmar and many more makes. And, ours are so long-life we go beyond normal warranty with the TKV Promise Guarantee.

TKV is FASTEST and makes it EASIEST to get VALUE, LASTING or PREMIUM tracks & undercarriage parts on your machine.

TKV has far and away Australia’s biggest range of tracks and undercarriage components. Our warehouses, in places like Melbourne, Sydney, Brisbane, Adelaide and Toowoomba, carry loads of excavator steel tracks, track chains, track groups and steel tracks for mini excavators, including aftermarket. So, when you’re in a hurry, we usually have what you need in your state. And it is ready to go!

So, to Keep Moving call 1300 65 11 43, use our Parts Finder or email us today for information or advice.
